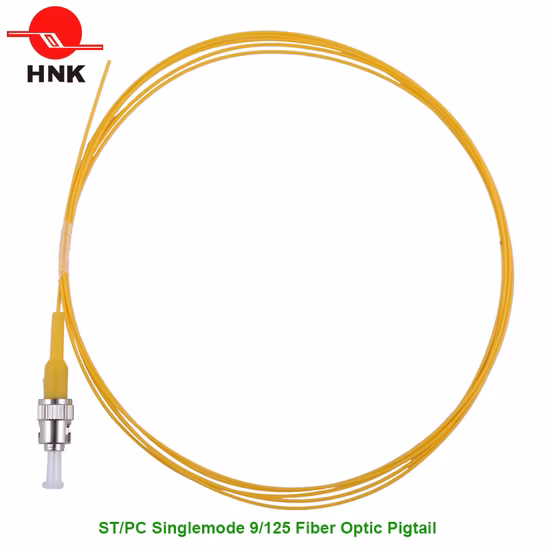

ST/PC Singlemode 9/125 PVC LSZH Fiber Optic Pigtail

Basic Info

Model NO.	ST/UPC PC
Application	Communication
Type	Single-Mode or Multi-Mode
Connection Structure	Sc, LC, St, FC, Mu
Material Shape	Round Wire
Allowed Lateral Pressure	100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength	>10000N
Core	Single Core
Certification	RoHS, CE, ISO9001
Brand	Risingsun or OEM
Sheath Material	PVC/LSZH
Fiber Type	G652D,G657A, Om1, Om2, Om3, Om4
Fan-out Tubing Diameter	0.9mm,2.0mm
Length	According to Requirement
Transport Package	PE Bag +Carton
Specification	CE, UL, ROHS, ISO9001
Trademark	RISINGSUN OR OEM
Origin	China
HS Code	90011000
Production Capacity	250000PCS/Month

Product Description

Fiber optic pigtails are used in permanent connections between fiber patch panels and incoming cables / single blown fibers.Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises ofmultimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factorssuch as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal useonly inside suitable Fiber Management Systems.Standards Compliance. ISO/IEC 11801. TIA-568-C.3. EN50173 -1,ANSI TIA/EIA 568BFeatures. Constructed from high quality connectors and standard fibers. Wide range of connector and fibre options available. Tight Buffer 900µm buffer internal construction as standard. Custom lengths, connector combinations and polishes are available.. Other cable diameters and fibre types available on requestSpecifications

Connector Type	SC, LC, FC, ST, MU
Fiber Type	G652D, G657A, OM1, OM2, OM3, OM4
Polish or Ferrule Interface Type	PC, UPC, APC
Jacket Material	PVC or LSZH
Cable Diameter	0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Color (Multimode: OM1 & OM2)	Orange
Jacket Color (Multimode: OM3)	Aqua
Jacket Color (Multimode: OM4)	Aqua or Purple
Jacket Color (SingleMode: G652D & Gb57A)	Yellow
Insertion Loss (dB) Max.	≤0.3
Return Loss (dB) Singlemode	PC≥45, UPC≥50, APC≥60
Return Loss (dB) Multimode	PC≥35dB
Note:Other Jacket colors may be available upon request.

Ordering InformationUsing the available configurations amend/create product codes using the formula below.Part Number: PT-AA-BCDEOrdering Guide

AA	B	C	D	E
connector Type	Fiber Type	Length	Jacket Material	Jacket Color(CL)
FP,SP,SA,LP	OM1=62.5/125 OM1OM2=50/125 OM2OM3=50/125 OM3OM4=50/125 OM4G652D=9/125 G652DG657A=9/125 G657A	01=1M02=2M03=3M10=10M	1=PVC2=LSZH	Yellow=YEOrange=ORAqua=AQPurple=PU

Ordering Sample

Part Number	Description
RS-SP-OM1-031OR	SC/PC Multimode 62.5/125 Fiber Optic Pigtail, PVC Jacket, Orange, 3M.
